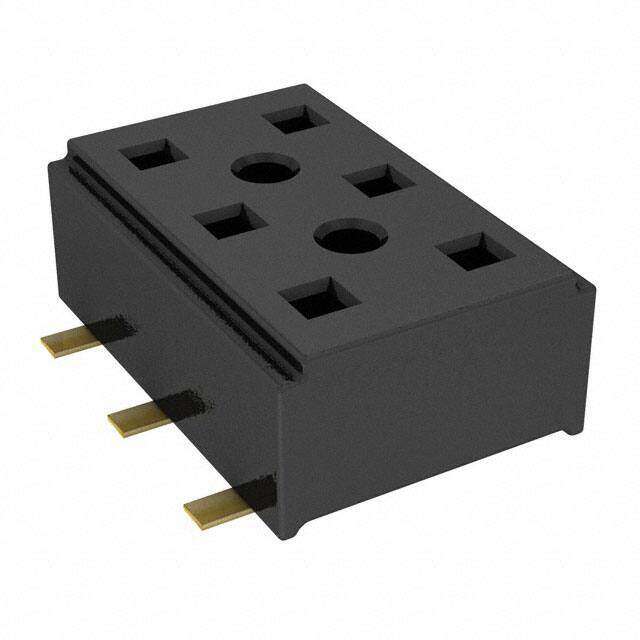

CLT-103-02-G-D-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 6 POS 2mm Solder ST SMD
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.2396
≥100 USD $1.973136
≥500 USD $1.677174
≥1000 USD $1.430528
≥3000 USD $1.282538
Inventory: 125
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 6mm
Technical
Insertion Force-Max .5004 N
Durability 100 Cycles
Max Current Rating 2A
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Body Breadth 0.157 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.083 2.10mm
Depth 4mm
Orientation Straight
Total Number of Contacts 6
Current Rating (Amps) 4.1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Gender Female
Number of Rows 2
Number of Positions 6
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Part Status Active
Feature Board Guide
JESD-609 Code e4
Series CLT
Published 2014
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 1 Weeks
