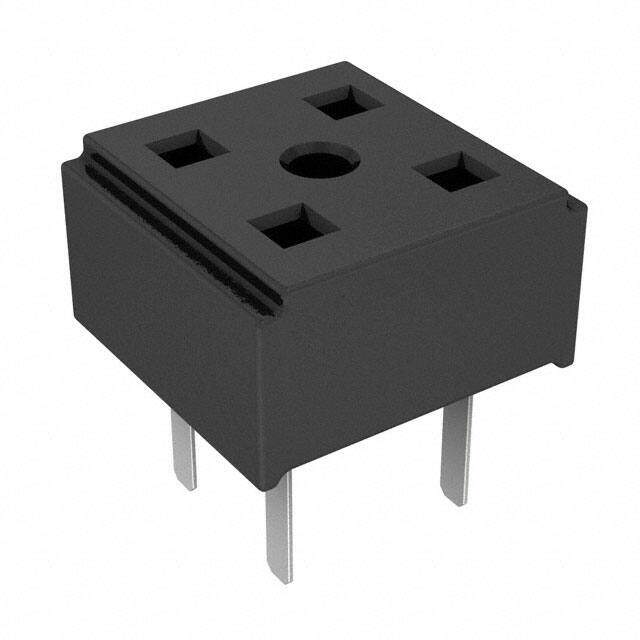

CLT-102-01-F-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 4 POS 2mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7744
≥1 USD $0.7744
≥10 USD $0.65472
≥100 USD $0.58784
≥500 USD $0.480938
≥1000 USD $0.427504
≥3000 USD $0.37407
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series CLT
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Number of Rows 2
Gender Female
Additional Feature E.L.P., TIGER CLAW CONTACT, LOW PROFILE
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Insulation Height 0.083 2.10mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.157 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.085 2.16mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.079 inch
Withdrawl Force-Min .1668 N
Dimensions
Plating Thickness FLASH inch
Contact Finish Thickness - Mating 3.00μin 0.076μm
Length - Termination 0.085 inch
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
