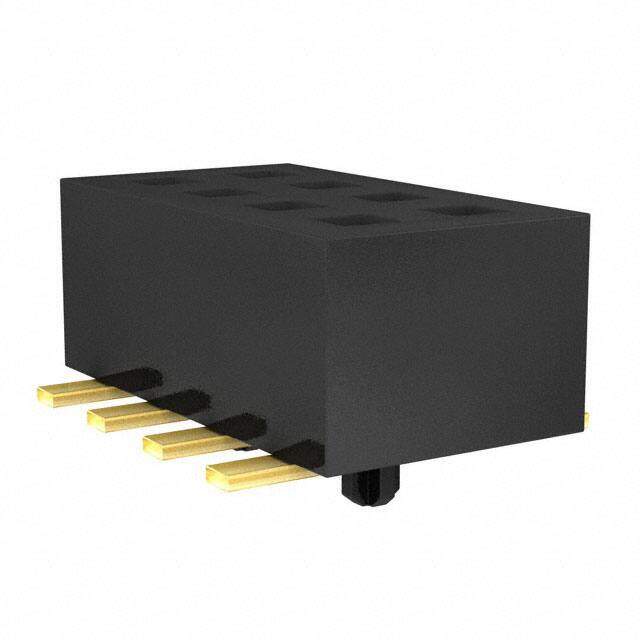

CLP-104-02-G-D-BE-A-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 8 POS 1.27mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.996468
≥1 USD $3.996468
≥200 USD $1.595174
≥500 USD $1.541345
≥1025 USD $1.515087
Inventory: 4345
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
Mating Contact Pitch 0.05 inch
Body Depth 0.09 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Voltage - Rated AC 240V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.084 2.14mm
Total Number of Contacts 8
Current Rating (Amps) 3.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 340V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature BOTTOM ENTRY, LOW PROFILE
Gender Female
Number of Rows 2
Number of Positions 8
Connector Type Receptacle, Bottom Entry
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e4
Series CLP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Board Mounting Option PEG
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
