CLP-103-02-G-D-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

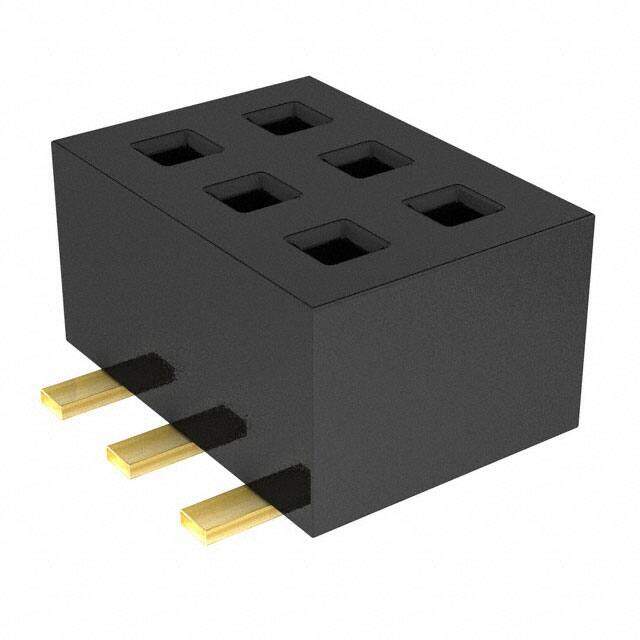

SAMTEC - CLP-103-02-G-D-BE . - SOCKET, 1.27MM, VERTICAL SMT, 6WAY
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.77496
≥100 USD $1.586464
≥500 USD $1.322094
≥1000 USD $1.13322
≥3000 USD $1.004784
Inventory: 119
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Length 4.24mm
Technical
Mating Contact Pitch 0.05 inch
Contact Resistance 10mOhm
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Voltage - Rated AC 240V
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.084 2.14mm
Depth 3.05mm
Orientation Straight
Total Number of Contacts 6
Current Rating (Amps) 3.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 340V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Gender Receptacle
Number of Rows 2
Number of Positions 6
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series CLP
Published 2013
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
