CLH-112-F-D-PE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

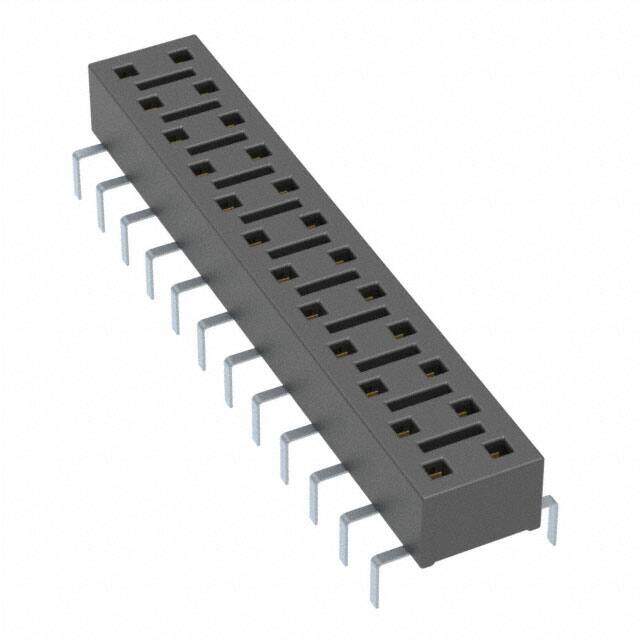

SAMTEC CLH-112-F-D-PE Board-To-Board Connector, Vertical, 24 Contacts, Receptacle, 2.54 mm, Through Hole, 2 Rows
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.3968
≥1 USD $3.3968
≥10 USD $3.08704
≥100 USD $2.719728
≥500 USD $2.31176
≥1000 USD $1.971798
Inventory: 320
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Plating Thickness FLASH inch
Length 30.48mm
Technical
Max Current Rating 2.2A
Mating Contact Pitch 0.1 inch
Contact Resistance 10mOhm
Rated Current (Signal) 1.5A
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.140 3.56mm
Depth 7.62mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Receptacle
Number of Rows 2
Number of Positions 24
Connector Type Receptacle, Pass Through
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series CLH
Published 2011
Packaging Tube
Operating Temperature -65°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
