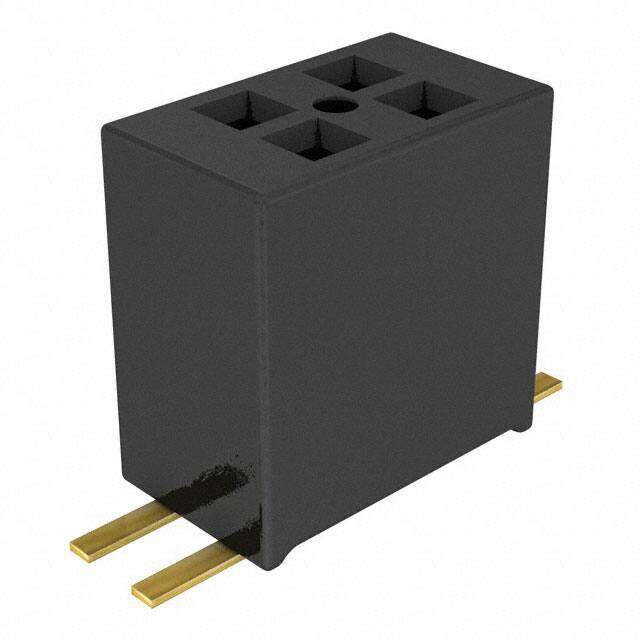

CLE-102-01-G-DV image
Favorite
CLE-102-01-G-DV image
Favorite

CLE-102-01-G-DV

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Rectangular Connector Header
PDF
/
Inventory: 4700
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Beryllium Copper
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2000
Series CLE
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Pass Through
Number of Positions 4
Color Black
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 2.7A per Contact
Pitch 787.4μm
Insulation Height 0.130 3.30mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Insulation Color Black
Row Spacing - Mating 0.047 (1.20mm)
Lead Pitch 800μm
Number of Contacts 4
Contact Finish - Post Gold
Housing Color Black

Dimensions

Height 3.12mm
Length 1.6mm
Width 3.18mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
