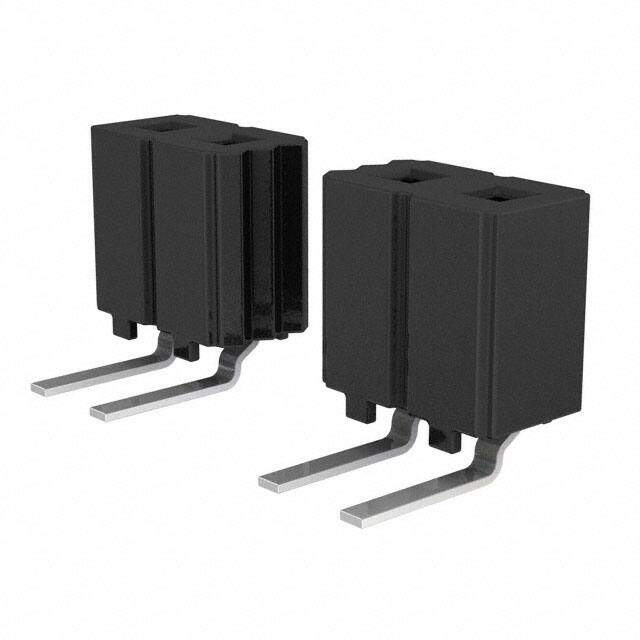

CES-140-02-T-S-RA

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description SAMTEC CES-140-02-T-S-RA Board-To-Board Connector, Right Angle, CES Series, 40 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Inventory: 4889
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 101.6mm

Technical

Insertion Force-Max 2.224 N
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 400V
Contact Resistance 10mOhm
Rated Current (Signal) 1A
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.120 3.05mm
Depth 6.1mm
Terminal Pitch 2.54mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 1
Number of Positions 40
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series CES
Published 2007
Packaging Tube
Operating Temperature -55°C~105°C

Physical

Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
