CES-112-02-G-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

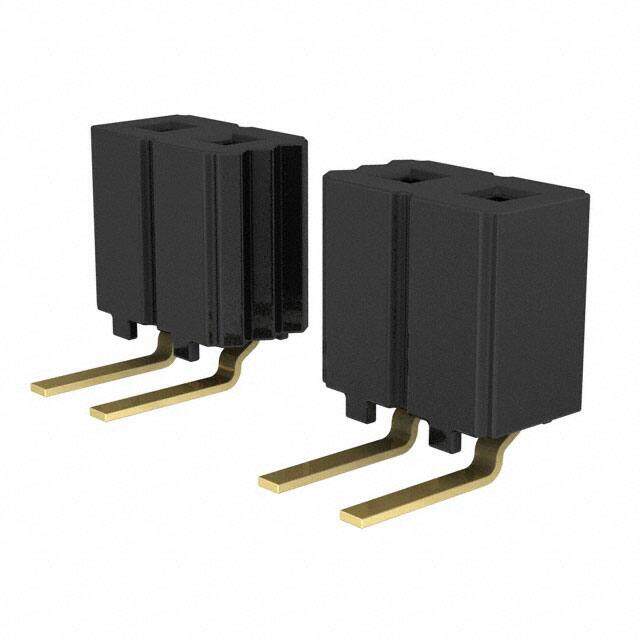

SAMTEC CES-112-02-G-S-RA Board-To-Board Connector, Right Angle, CES Series, 12 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Inventory: 3764
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Plating Thickness 20μin
Technical
Insertion Force-Max 2.224 N
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1A
Body Depth 0.24 inch
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.120 3.05mm
Terminal Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature WITH LOW PROFILE
Number of Rows 1
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series CES
Published 2007
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
