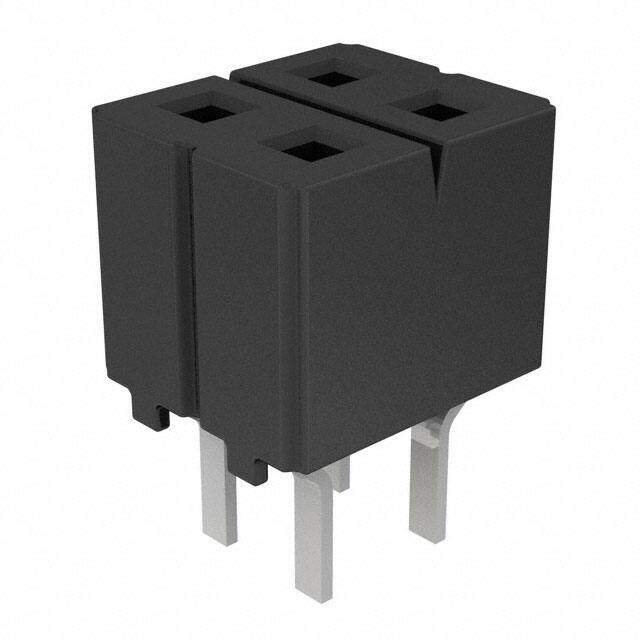

CES-102-02-S-D image
Favorite

CES-102-02-S-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.164953
≥1 USD $1.164953
≥10 USD $1.099017
≥100 USD $1.036811
≥500 USD $0.978123
≥1000 USD $0.922759
Inventory: 5039
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Series CES
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 4
Number of Rows 2
Gender Female
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Pitch 2.54mm
Insulation Height 0.200 5.08mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.223 5.66mm
Number of Contacts 4
Contact Finish - Post Tin

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
