CES-101-02-T-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

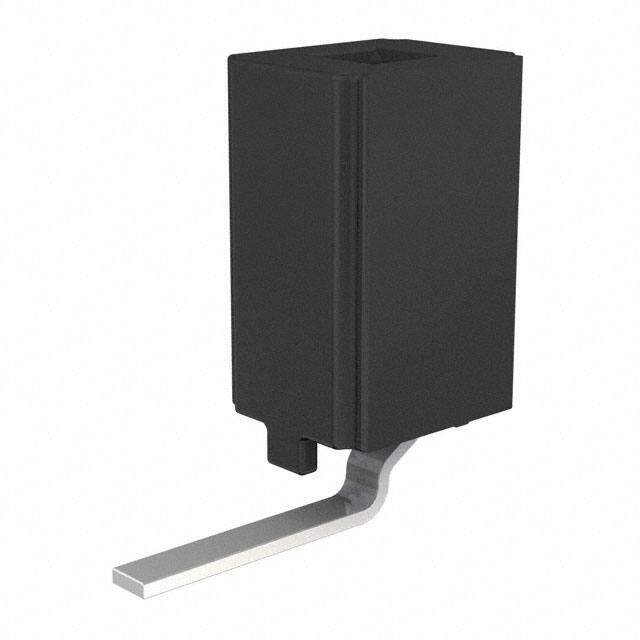

SAMTEC CES-101-02-T-S-RA Board-To-Board Connector, Right Angle, CES Series, 1 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
≥10 USD $0.19624
≥100 USD $0.152416
≥500 USD $0.130662
≥1000 USD $0.108874
≥3000 USD $0.093324
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series CES
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 1
Number of Rows 1
Additional Feature LOW PROFILE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Terminal Pitch 2.54mm
Insulation Height 0.120 3.05mm
Style Board to Board
Number of Positions Loaded All
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.120 3.05mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Body Depth 0.24 inch
Rated Current (Signal) 1A
Polarization Key POLARIZED HOUSING
Insertion Force-Max 2.224 N
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
