BSW-116-04-L-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

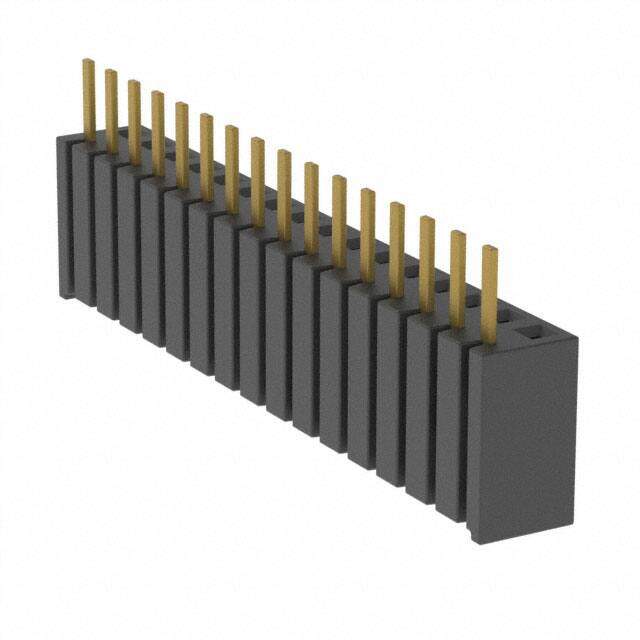

Conn Bottom Mount Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.31
Unit Price: USD $4.312
≥1 USD $4.312
≥10 USD $3.91424
≥100 USD $3.448544
≥500 USD $2.931262
≥1000 USD $2.500194
Inventory: 630
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Bottom Mount
Contact Shape Square
Insulation Material Polyethylene Terephthalate (PET), Glass Filled
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series BSW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Breakaway
Number of Positions 16
Number of Rows 1
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Terminal Pitch 2.54mm
Depth 5.08mm
Insulation Height 0.350 8.89mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.170 4.32mm
Contact Finish - Post Tin
UL Flammability Code 94V-0
Contact Resistance 10mOhm
Max Current Rating 3A
Dimensions
Length 41.15mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
