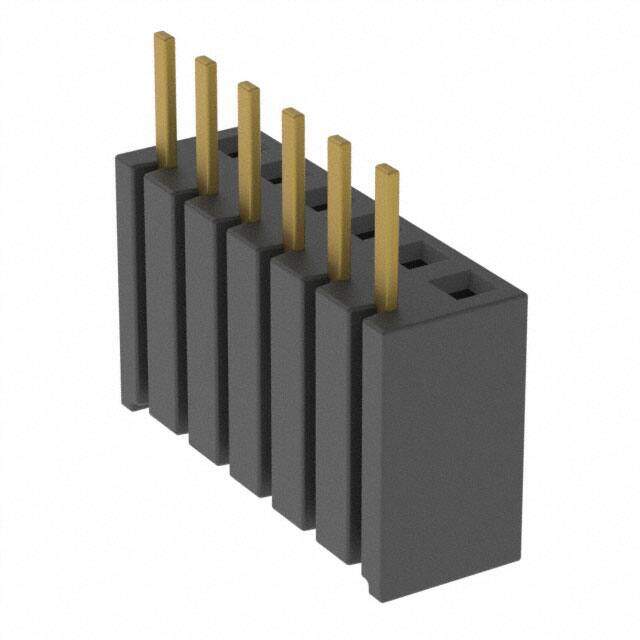

BSW-106-04-L-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Bottom Mount Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 3796
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
UL Flammability Code 94V-0
Contact Finish - Post Tin
Number of Contacts 12
Contact Length - Post 0.170 4.32mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.350 8.89mm
Terminal Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Female
Number of Rows 1
Number of Positions 6
Connector Type Receptacle, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series BSW
Published 2016
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polyethylene Terephthalate (PET), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Bottom Mount
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
