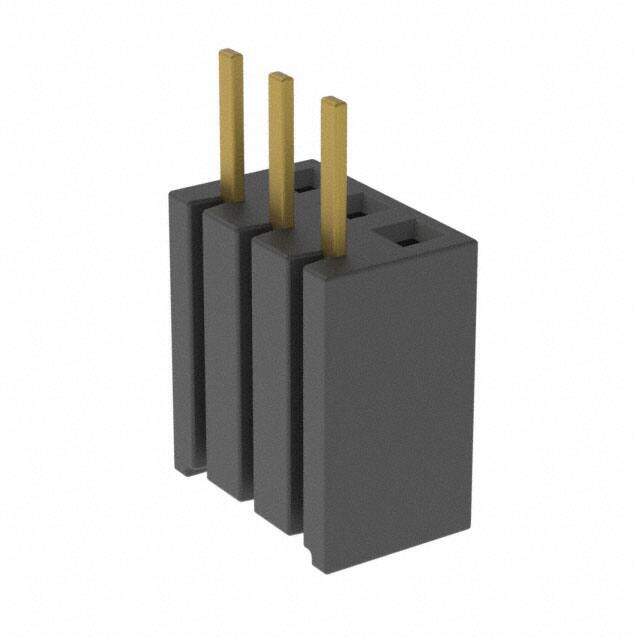

BSW-103-04-L-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 3POS 0.1 GOLD PCB
PDF
/
Inventory: 8405
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Withdrawl Force-Min 2.224 N
Insertion Force-Max 2.224 N
Polarization Key POLARIZED HOUSING
Insulation Resistance 5000000000Ohm
UL Flammability Code 94V-0
Body Breadth 0.2 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Contact Length - Post 0.150 3.81mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.350 8.89mm
Terminal Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TIGER BUY CONTACT; LOW PROFILE
Number of Rows 1
Number of Positions 3
Connector Type Receptacle, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series BSW
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Insulation Material Polyethylene Terephthalate (PET), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Bottom Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
