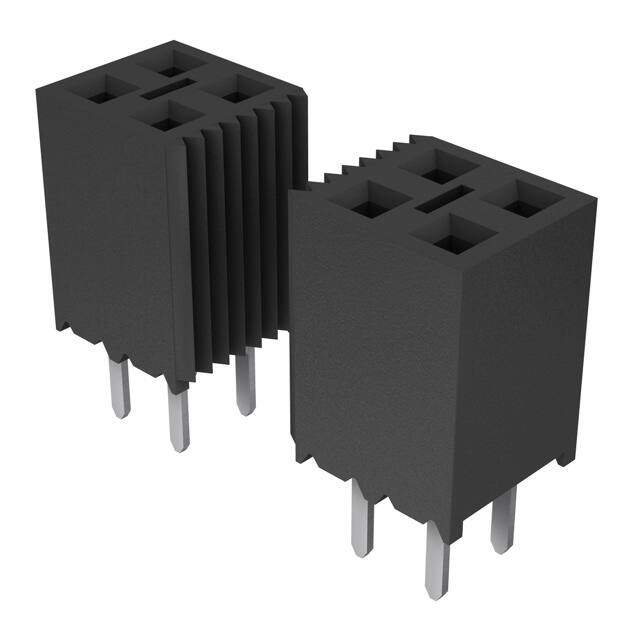

BCS-134-L-D-TE-059
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 68POS 0.1 GOLD PCB
PDF
/
Inventory: 3705
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Tiger Claw? BCS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 68
Number of Rows 2
Voltage - Rated 475VAC
Additional Feature 59TH PIN POLARIZED
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.6A per Contact
Insulation Height 0.290 7.37mm
Style Board to Board
Number of Positions Loaded 67
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 3.4 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLAR PIN POSITION
Dielectric Withstanding Voltage 375VAC V
Durability 500 Cycles
Insertion Force-Max 1.39 N
Withdrawl Force-Min .834 N
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
