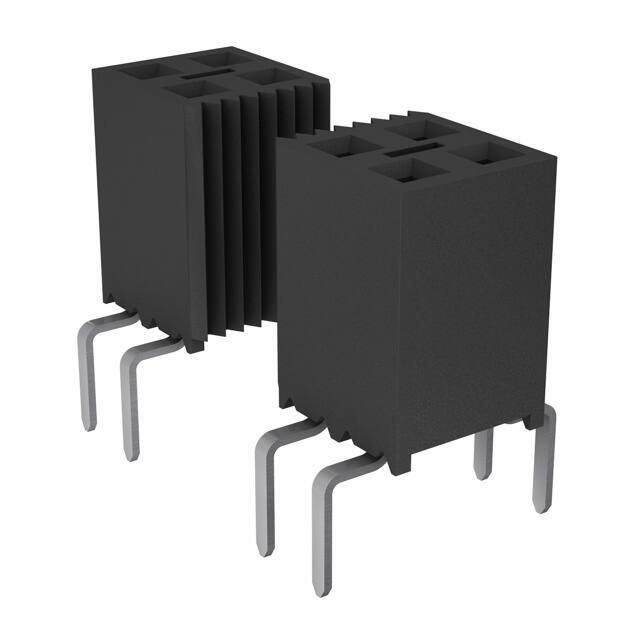

BCS-132-L-D-PE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 64POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $10.58
Unit Price: USD $10.580405
≥1 USD $10.580405
≥10 USD $9.981512
≥100 USD $9.416524
≥500 USD $8.883514
≥1000 USD $8.380673
Inventory: 3103
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Tiger Claw? BCS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Pass Through
Number of Positions 64
Number of Rows 2
Gender Receptacle
Voltage - Rated 475VAC
Additional Feature ELP, PASS THROUGH ENTRY
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.6A per Contact
Orientation Vertical
Insulation Height 0.290 7.37mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.128 3.25mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 375VAC V
Durability 500 Cycles
Insertion Force-Max 1.39 N
Withdrawl Force-Min .834 N
Dimensions
Height 7.37mm
Length 81.3mm
Width 5.08mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
