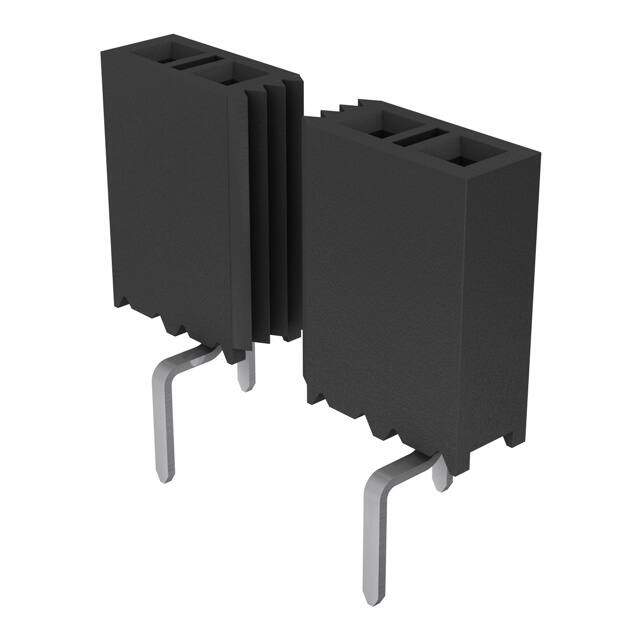

BCS-119-L-S-PE-016
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 19POS 0.1 GOLD PCB
PDF
/
Inventory: 2709
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Withdrawl Force-Min .834 N
Durability 500 Cycles
PCB Contact Row Spacing 5.08 mm
Dielectric Withstanding Voltage 375VAC V
Polarization Key POLAR PIN POSITION
Insulation Resistance 5000000000Ohm
Body Depth 0.29 inch
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.128 3.25mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded 18
Style Board to Board
Insulation Height 0.290 7.37mm
Terminal Pitch 2.54mm
Current Rating (Amps) 4.6A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature STAGGERED CONFIGURATION
Voltage - Rated 475VAC
Number of Rows 1
Number of Positions 19
Connector Type Receptacle, Pass Through
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Tiger Claw? BCS
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
