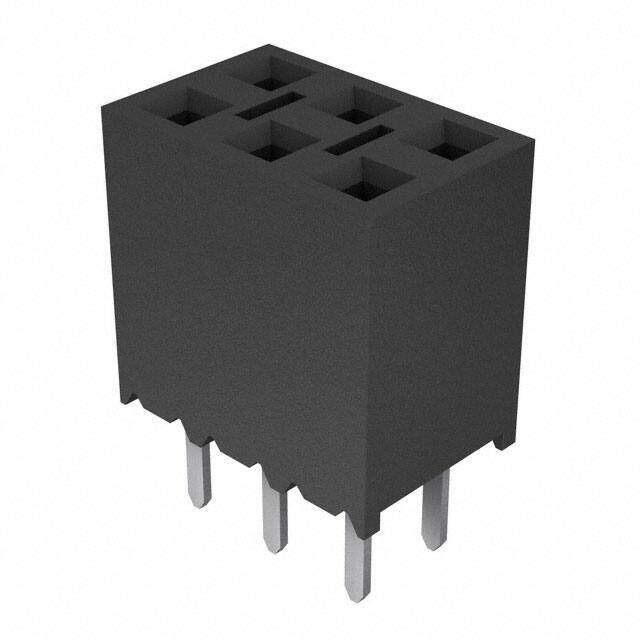

BCS-103-F-D-TE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.7116
≥100 USD $1.529704
≥500 USD $1.274768
≥1000 USD $1.092661
≥3000 USD $0.968827
Inventory: 146
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Technical
Contact Finish - Post Tin
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.290 7.37mm
Current Rating (Amps) 4.6A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 475VAC
Gender Female
Number of Rows 2
Number of Positions 6
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Tiger Claw? BCS
Published 2015
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
