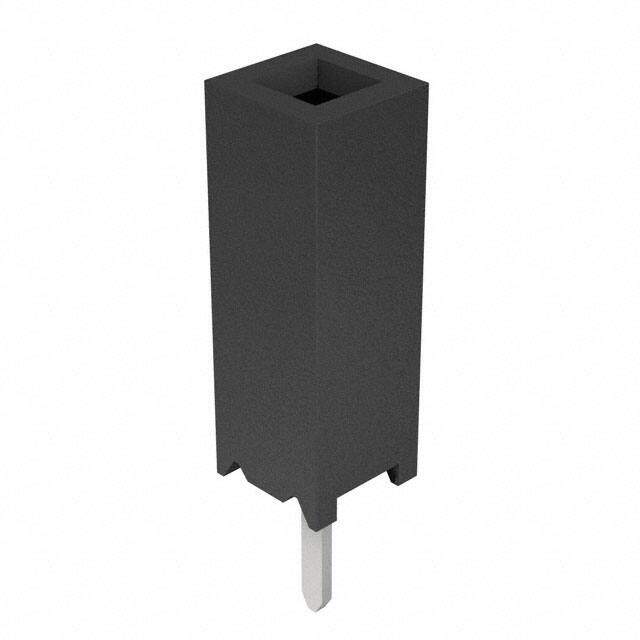

BCS-101-T-S-TE image
Favorite
BCS-101-T-S-TE image
Favorite

BCS-101-T-S-TE

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description TOP ENTRY Rectangular Connector Female Socket
PDF
/
Inventory: 940
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.6A per Contact
Insulation Height 0.290 7.37mm
Style Board to Board
Number of Positions Loaded All
Insulation Color Black
Contact Length - Post 0.122 3.10mm
UL Flammability Code 94V-0
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature TOP ENTRY
Voltage - Rated 475VAC
Gender Female
Number of Rows 1
Number of Positions 1
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Tiger Claw? BCS
Published 2015
Packaging Tray
Operating Temperature -55°C~125°C

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant

Physical

Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
