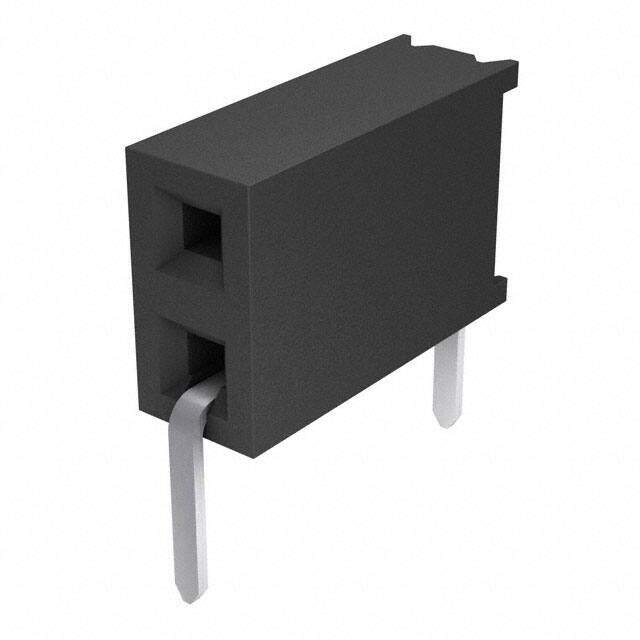

BCS-101-LM-D-HE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Header
PDF
/
Inventory: 7312
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Contact Finish - Post Tin
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.210 5.33mm
Current Rating (Amps) 4.6A per Contact
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 475VAC
Gender Female
Number of Positions 2
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Tiger Claw? BCS
Published 2016
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
