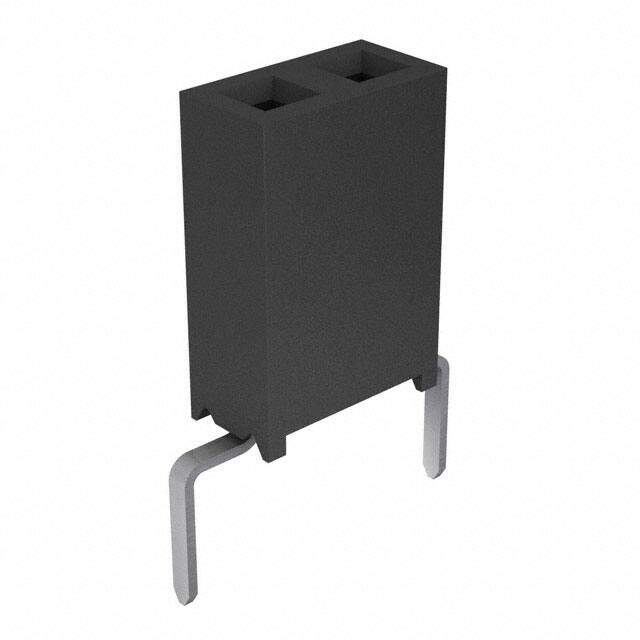

BCS-101-L-D-PE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 2POS .100 DUAL VERT
PDF
/
Inventory: 6507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2011
Series Tiger Claw? BCS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Pass Through
Number of Positions 2
Number of Rows 2
Gender Female
Voltage - Rated 475VAC
Additional Feature ELP, PASS THROUGH ENTRY
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.6A per Contact
Pitch 2.54mm
Insulation Height 0.290 7.37mm
Style Board to Board
Number of Positions Loaded All
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.128 3.25mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Resistance 10mOhm
Insertion Force-Max 1.39 N
Withdrawl Force-Min .834 N
Dimensions
Height 7.37mm
Length 2.54mm
Width 5.08mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 50.0μin 1.27μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
