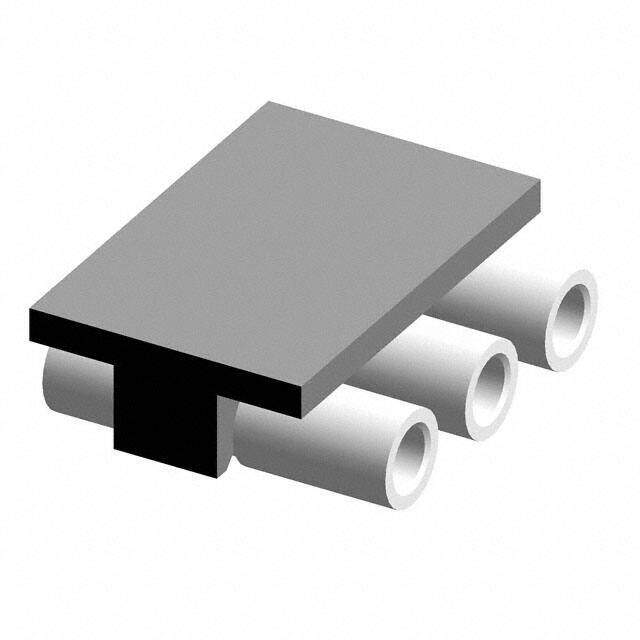

8FM-38-0003-02-146191
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 3P 0.1 GOLD SMD R/A
PDF
/
Inventory: 2884
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 8FM
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 3
Number of Rows 1
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Total Number of Contacts 3
Terminal Pitch 2.54mm
Insulation Height 0.096 2.44mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.096 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
