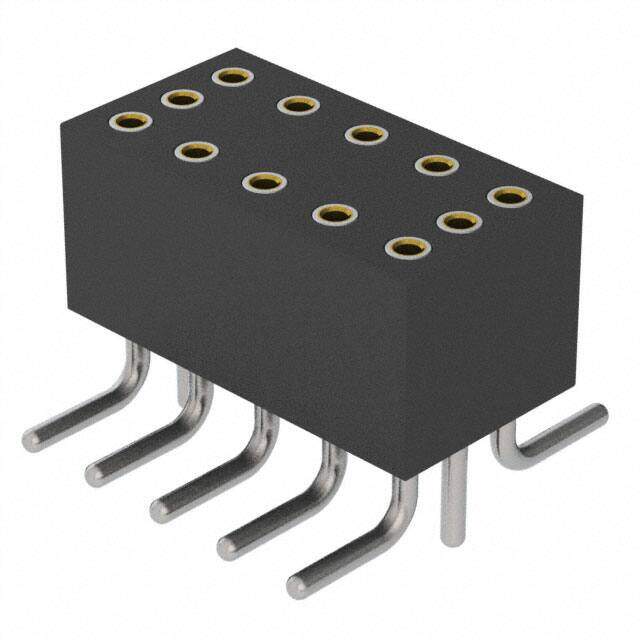

853-83-010-30-051101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 10POS 0.05 GOLD SMD
PDF
/
Inventory: 4789
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 853
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 10
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.203 5.16mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
