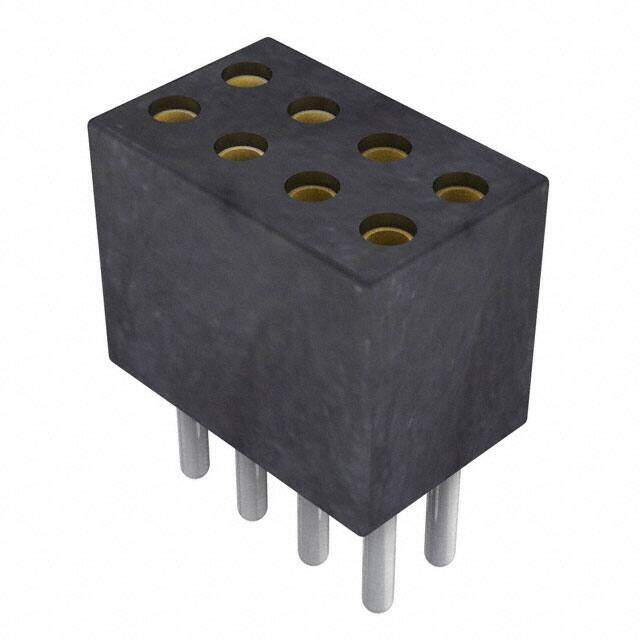

853-83-008-10-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 8 POS 1.27mm Solder ST Thru-Hole Box
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.9272
≥1 USD $1.9272
≥10 USD $1.67552
≥100 USD $1.247594
≥500 USD $1.211945
≥1000 USD $1.069358
≥3000 USD $0.948165
Inventory: 203
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Plating Thickness 30μin
Length 5.49mm
Technical
Durability 500 Cycles
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Max Voltage Rating (AC) 100V
Mating Contact Pitch 0.05 inch
Insulation Resistance 10000000000Ohm
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.157 4.00mm
Depth 3.25mm
Orientation Straight
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Female
Number of Rows 2
Number of Positions 8
Connector Type Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series 853
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polychlorinated
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
