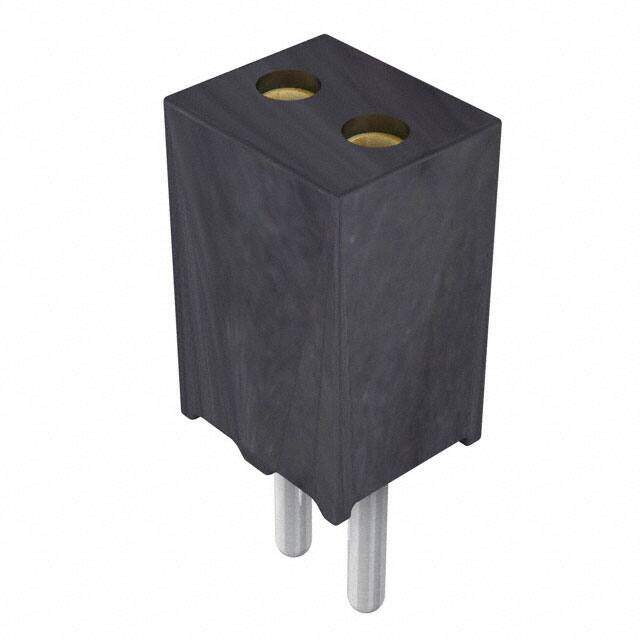

851-87-002-10-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 2POS 0.05 GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.43736
≥100 USD $0.360624
≥500 USD $0.313562
≥1000 USD $0.23518
≥3000 USD $0.211658
Inventory: 589
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Glass fibre
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series 851
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 2
Number of Rows 1
Gender Female
Voltage - Rated 150V
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 4.1mm
Insulation Height 0.161 4.10mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.091 2.30mm
Contact Finish - Post Tin
Body Breadth 0.087 inch
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Mating Contact Pitch 0.05 inch
Dielectric Withstanding Voltage 700VAC V
Durability 500 Cycles
Insertion Force-Max .5004 N
Dimensions
Length 2.95mm
Width 2.2mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
