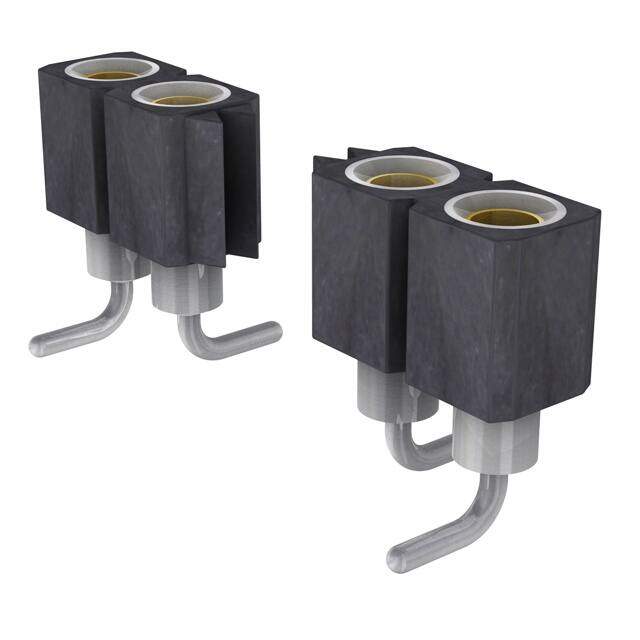

831-87-024-30-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 24POS 0.079 GOLD SMD
PDF
/
Inventory: 3196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 831
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 24
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Total Number of Contacts 24
Terminal Pitch 2mm
Insulation Height 0.228 5.80mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Finish - Post Tin
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
