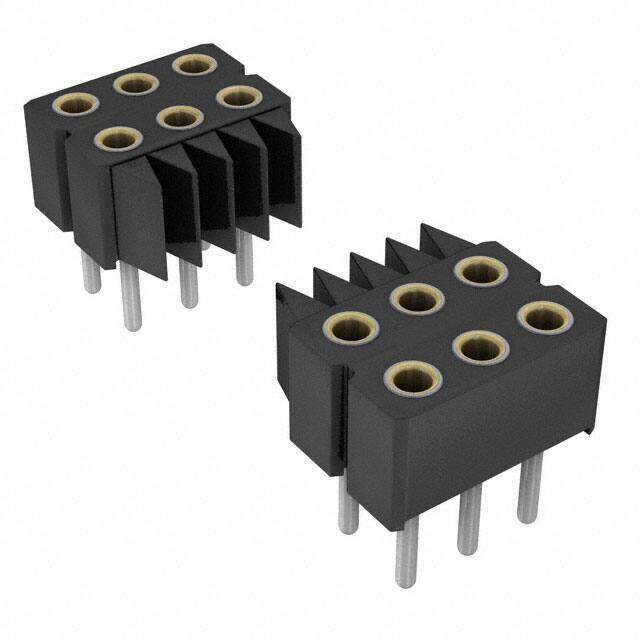

805-87-039-10-012101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 39POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.418511
≥1 USD $3.418511
≥10 USD $3.225007
≥100 USD $3.042461
≥500 USD $2.870248
≥1000 USD $2.707781
Inventory: 5361
Minimum: 1
-
+
Technical Details
Technical
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Number Of PCB Rows 3
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Depth 0.165 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1400VAC V
PCB Contact Row Spacing 2.54 mm
Durability 500 Cycles
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.165 4.20mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 3
Number of Positions 39
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 805
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Contact Finish Thickness - Mating Flash
Length - Termination 0.125 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
