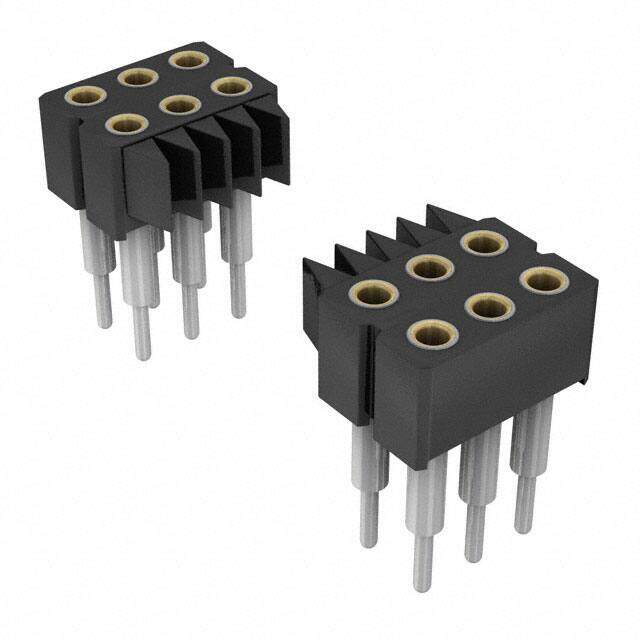

805-83-054-10-005101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 54POS 0.1 GOLD PCB
PDF
/
Inventory: 3873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Contact Length - Post 0.116 2.95mm
Number Of PCB Rows 3
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1400VAC V
Durability 500 Cycles
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.8 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.331 8.40mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 3
Number of Positions 54
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 805
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Length - Termination 0.121 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
