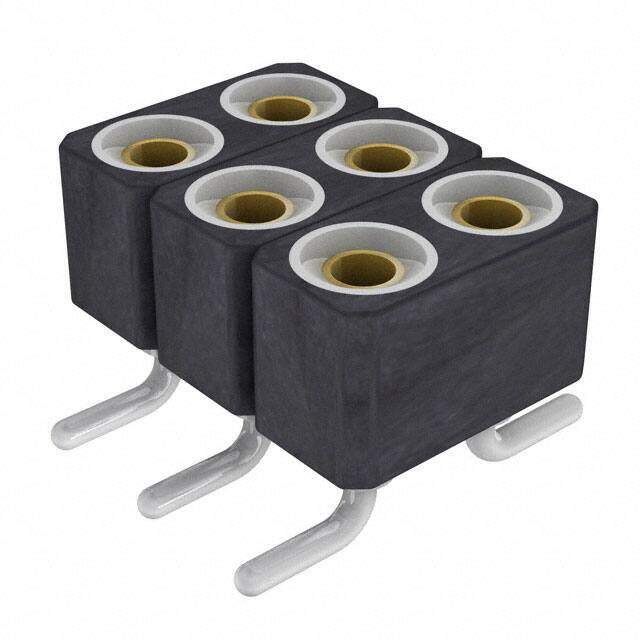

803-87-006-30-002101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 6 POS 2.54mm Solder ST SMD T/R
PDF
/
Inventory: 9808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polychlorinated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series 803
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 6
Number of Rows 2
Gender Female
Voltage - Rated 150V
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Total Number of Contacts 6
Orientation Straight
Depth 5.08mm
Insulation Height 0.220 5.60mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Housing Color Black
Rated Current (Signal) 3A
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 100V
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1400VAC V
PCB Contact Row Spacing 5.1054 mm
Durability 500 Cycles
Dimensions
Length 7.62mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
