803-83-006-10-268101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

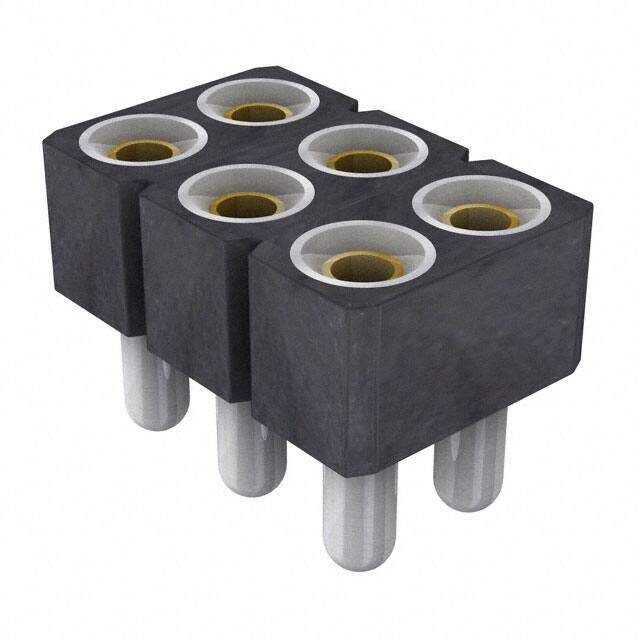

CONN SOCKET 6POS 0.1 GOLD PCB
PDF
/
Inventory: 1749
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 803
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 6
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.116 2.95mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.3 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.108 2.75mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 1400VAC V
Durability 500 Cycles
Insertion Force-Max 1.1954 N
Withdrawl Force-Min .5838 N
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
