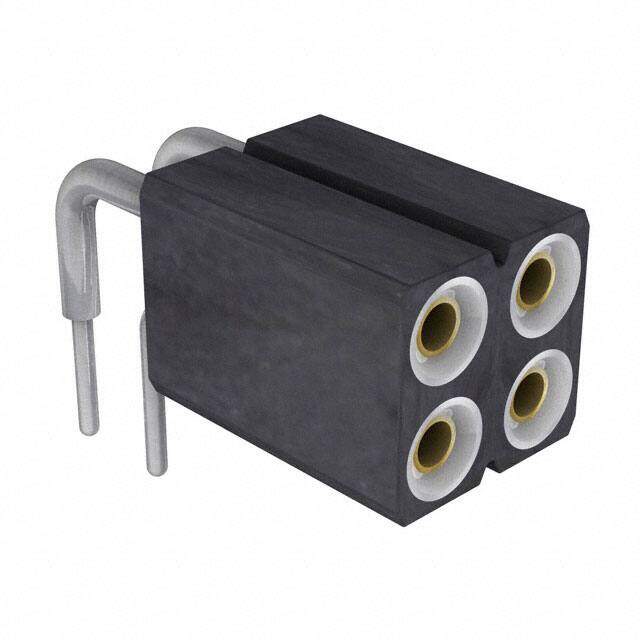

803-83-004-20-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole Box
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $0.9548
≥100 USD $0.857384
≥500 USD $0.701536
≥1000 USD $0.623577
≥3000 USD $0.545635
Inventory: 502
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polychlorinated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 803
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket
Number of Positions 4
Number of Rows 2
Gender Female
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Right Angle
Depth 10.84mm
Insulation Height 0.200 5.08mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 10mOhm
Max Voltage Rating (AC) 100V
Max Current Rating 3A
Dimensions
Length 5.08mm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
