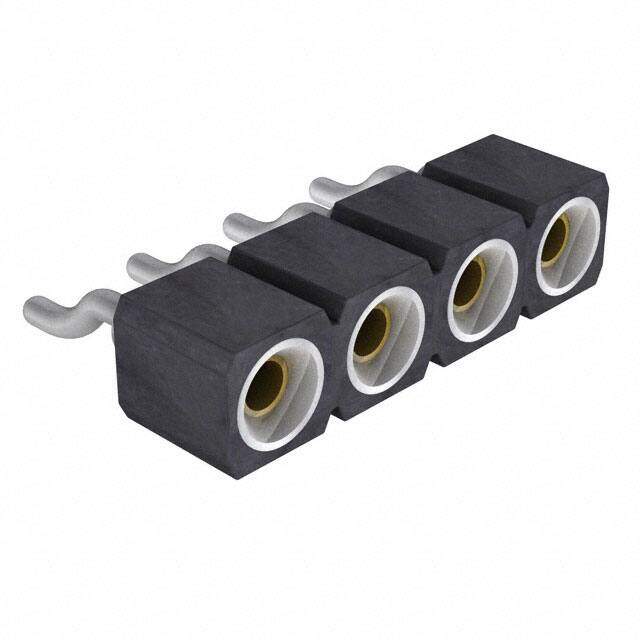

801-87-004-40-002101 image
Favorite
801-87-004-40-002101 image
Favorite

801-87-004-40-002101

Preci-Dip
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN SOCKET 4P 0.1 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.431394
≥1 USD $0.431394
≥10 USD $0.406983
≥100 USD $0.383941
≥500 USD $0.362209
≥1000 USD $0.341711
Inventory: 7754
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash

Technical

Withdrawl Force-Min .5838 N
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Body Depth 0.279 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Total Number of Contacts 4
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 4
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 801
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 10 Weeks
