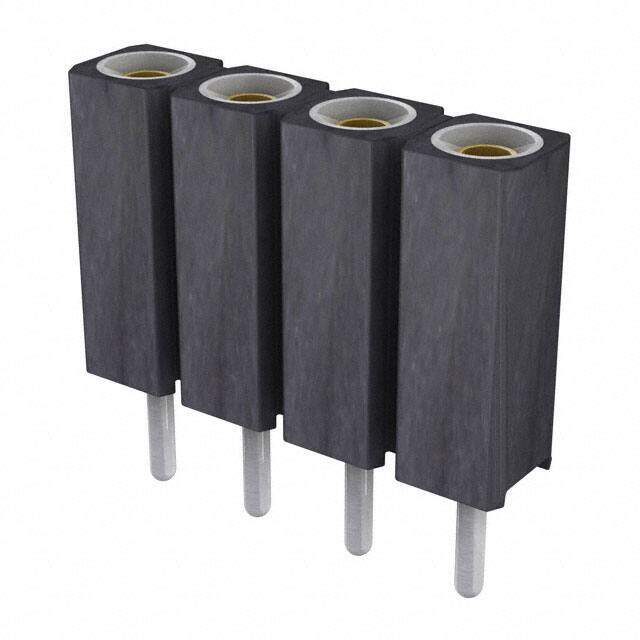

801-87-004-10-005101
RoHS
RoHS compliant
RoHS compliantPackage SIP
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn SIP Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 4087
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Length 10.16mm
Technical
Max Current Rating 3A
Max Voltage Rating (AC) 100V
Contact Resistance 10mOhm
Housing Color Black
Contact Finish - Post Tin
Contact Length - Post 0.118 3.00mm
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Depth 2.54mm
Orientation Straight
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 4
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 801
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polychlorinated
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Package / Case SIP
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
