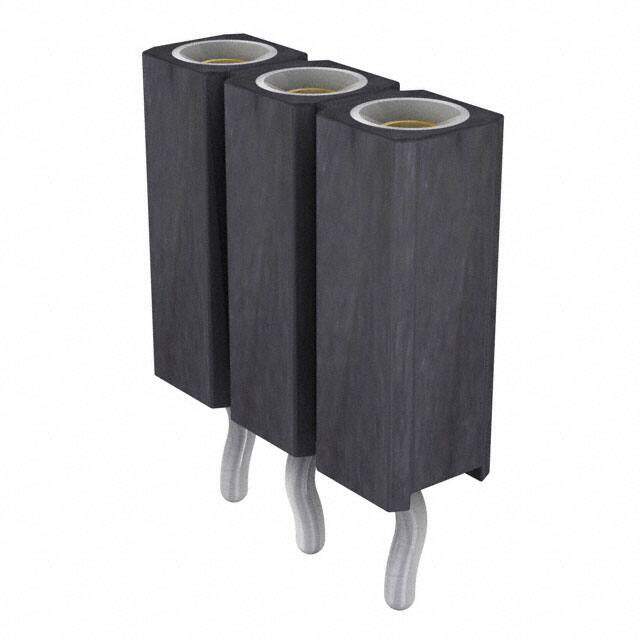

801-87-003-10-143101

Preci-Dip
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 3829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.276 7.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Female
Number of Rows 1
Number of Positions 3
Connector Type Socket
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series 801
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Durability 500 Cycles
Body Depth 0.276 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black

Physical

Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 10 Weeks

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
