801-83-014-20-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

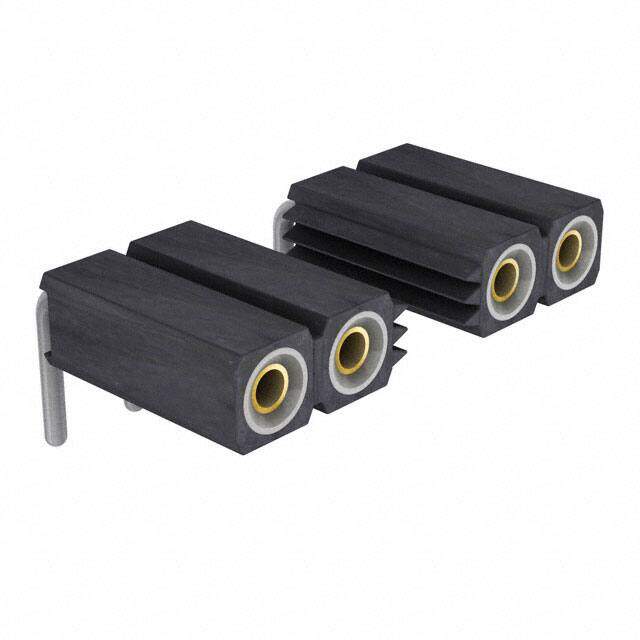

Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole
PDF
/
Inventory: 6590
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Series 801
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Socket
Number of Positions 14
Number of Rows 1
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Depth 0.327 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
