801-83-005-10-101101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

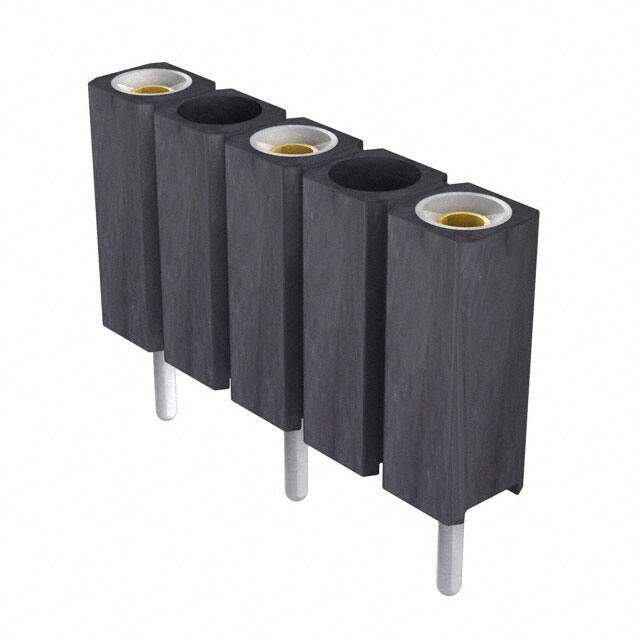

CONN SOCKET 3POS 0.2 GOLD PCB
PDF
/
Inventory: 6795
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Technical
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.2 inch
Body Depth 0.276 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Contact Length - Post 0.118 3.00mm
Body Length or Diameter 0.9 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.200 5.08mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.276 7.00mm
Terminal Pitch 5.08mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 3
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 801
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
