499-87-210-10-003101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

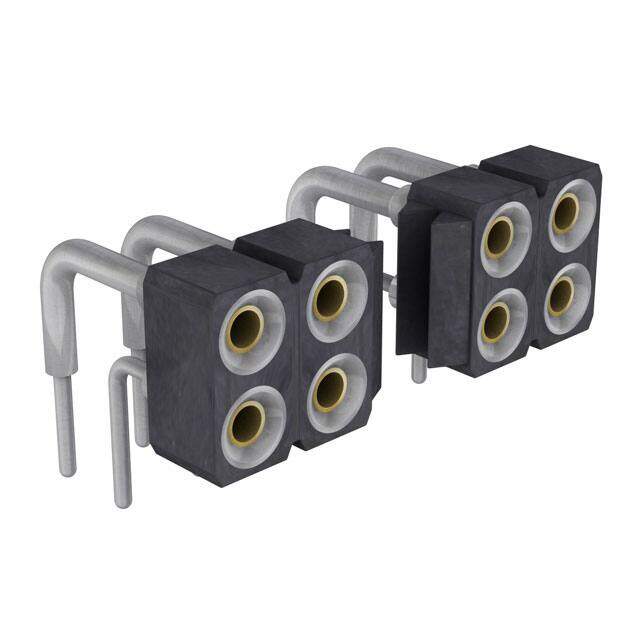

Preci-Dip 499 Series 2.54mm 10 Way 2 Row Right Angle PCB Socket PCB Mount Board to Board
PDF
/
Inventory: 5677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polychlorinated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2010
Series 499
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Socket
Number of Positions 10
Number of Rows 2
Voltage - Rated 150V
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 8.14mm
Insulation Height 0.200 5.08mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Housing Color Black
Rated Current (Signal) 3A
Contact Resistance 10mOhm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 100V
Max Current Rating 1A
Dielectric Withstanding Voltage 1400VAC V
Durability 500 Cycles
Withdrawl Force-Min 1.0008 N
Dimensions
Length 12.7mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
