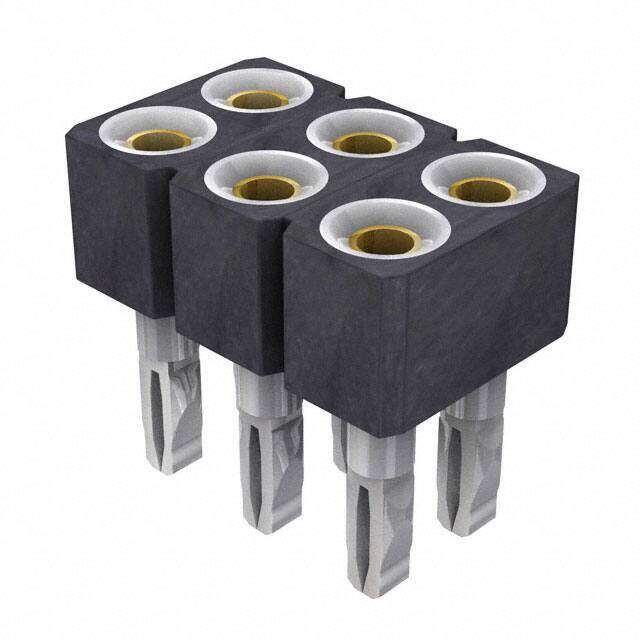

446-83-206-41-036101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 6POS 0.1 GOLD PCB
PDF
/
Inventory: 5404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 446
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Socket
Number of Positions 6
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.173 4.40mm
Style Board to Board
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.3 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Number Of PCB Rows 2
Contact Finish - Post Tin
Body Depth 0.173 inch
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Durability 500 Cycles
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Length - Termination 0.11 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
