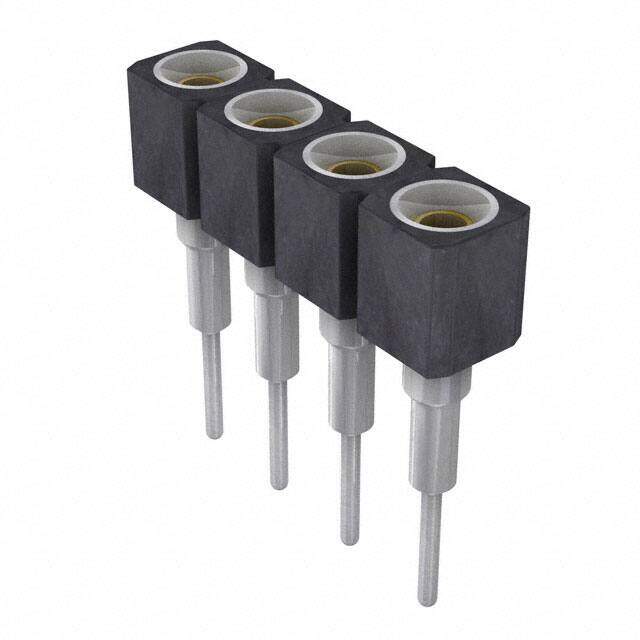

316-87-104-41-002101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 4POS 0.1 GOLD PCB
PDF
/
Inventory: 8951
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Contact Finish - Post Tin
Contact Length - Post 0.126 3.20mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.433 11.00mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 4
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series 316
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
