315-87-104-41-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

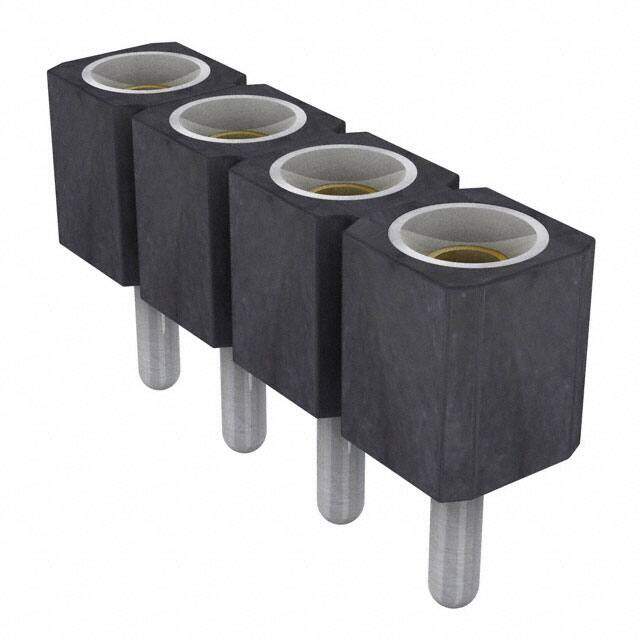

Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Box
PDF
/
Inventory: 9619
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polychlorinated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series 315
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Socket
Number of Positions 4
Number of Rows 1
Gender Female
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Orientation Straight
Depth 2.54mm
Insulation Height 0.124 3.14mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.107 2.71mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Resistance 10mOhm
Max Voltage Rating (AC) 100V
Max Current Rating 3A
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Max Voltage Rating (DC) 150V
Dimensions
Length 10.16mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
