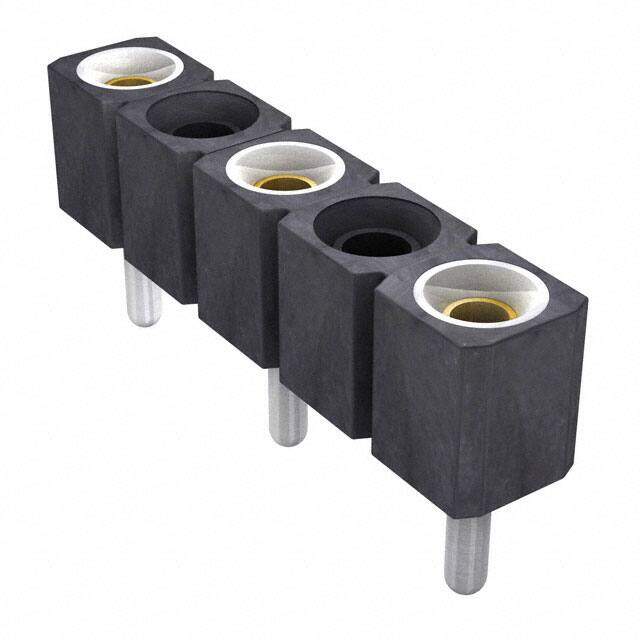

315-87-103-01-881101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 2POS 0.2 GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.63184
≥100 USD $0.567248
≥500 USD $0.464112
≥1000 USD $0.412544
≥3000 USD $0.360976
Inventory: 1344
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Durability 500 Cycles
Polarization Key POLARIZED HOUSING
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 1
Contact Length - Post 0.107 2.71mm
Body Length or Diameter 0.5 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.200 5.08mm
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.124 3.14mm
Terminal Pitch 5.08mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 2
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 315
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 10 Weeks
