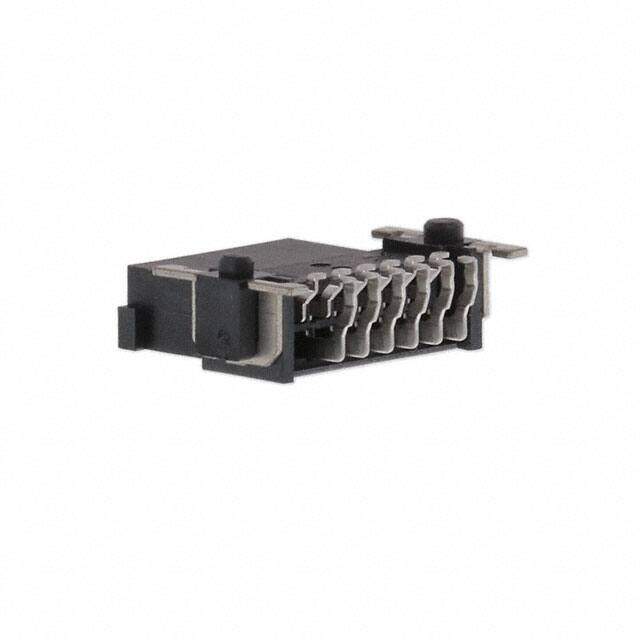

1714869
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Terminal Block Connector; Board-Board; FP 1; 27/ 12-FH; FINEPITCH Series
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.8896
≥1 USD $3.8896
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.150 3.81mm
Current Rating (Amps) 1.4A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Number of Rows 2
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series COMBICON FP
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
