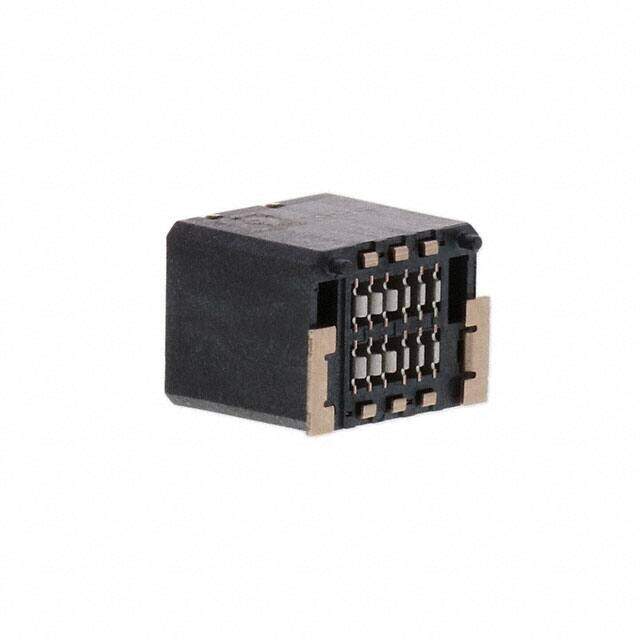

1043682
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPTACLE 0.8MM 12POS SMD
PDF
/
Buying Options
Total Price: USD $4.57
Unit Price: USD $4.5672
≥1 USD $4.5672
Inventory: 195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series COMBICON FP
Feature Board Guide, Shielded, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 2
Voltage - Rated 500V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1.4A
Insulation Height 0.309 7.85mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.031 0.80mm
Insulation Color Black
Row Spacing - Mating 0.056 (1.42mm)
Contact Finish - Post Tin
Dimensions
Stack Height (Mating) 9mm 10.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
