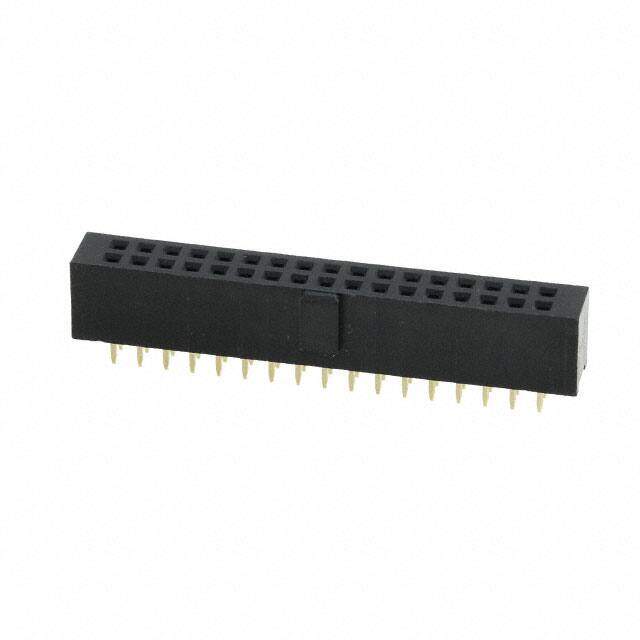

SH2-34G-PT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100" 34POS DUAL GOLD
PDF
/
Inventory: 5446
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 34
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series SH
Feature Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 34
Color Black
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 1A
Pitch 2.54mm
Insulation Height 0.331 8.40mm
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.130 3.30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
