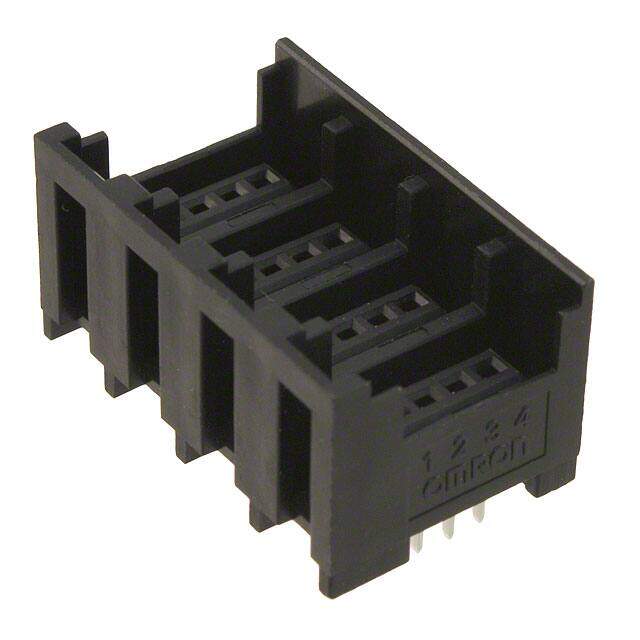

XN2D-4471
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONNECTOR SKT QUAD 4POS ECON PCB
PDF
/
Buying Options
Total Price: USD $7.66
Unit Price: USD $7.6648
≥1 USD $7.6648
≥10 USD $7.56096
≥100 USD $7.45712
≥500 USD $7.353632
≥1000 USD $7.250056
≥3000 USD $6.628653
Inventory: 436
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Length 25.9mm
Technical
Max Voltage Rating (DC) 32V
Durability 50 Cycles
PCB Contact Row Spacing 2.0066 mm
Dielectric Withstanding Voltage 1000VAC V
Mating Contact Pitch 0.079 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Housing Color Black
Body Breadth 1.02 inch
Contact Finish - Post Tin
Number of Contacts 16
Number Of PCB Rows 4
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.256 (6.50mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.512 13.00mm
Depth 15.8mm
Terminal Pitch 2mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 32V
Subcategory Headers and Edge Type Connectors
Fastening Type Detent Lock
Voltage - Rated 32VDC
Gender Female
Number of Rows 4
Number of Positions 16 (4 x 4 Ports)
Connector Type Receptacle
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series XN2
Published 2001
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
