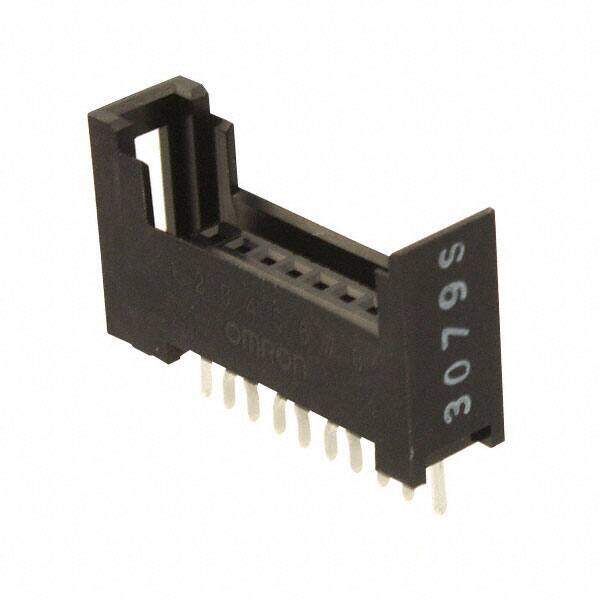

XN2D-1871
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 8POS 0.079 GOLD PCB
PDF
/
Buying Options
Total Price: USD $5.88
Unit Price: USD $5.8784
≥1 USD $5.8784
≥10 USD $5.79744
≥100 USD $5.717536
≥500 USD $5.63816
≥1000 USD $5.558766
≥3000 USD $5.082326
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Technical
Max Voltage Rating (DC) 32V
Contact Resistance 30mOhm
Contact Finish - Post Tin
Number of Contacts 8
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.512 13.00mm
Orientation Straight
Pitch 2mm
Contact Type Female Socket
Contact Finish - Mating Gold
Voltage - Rated DC 32V
Fastening Type Detent Lock
Voltage - Rated 32VDC
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 75°C
Number of Positions 8
Connector Type Receptacle
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series XN2
Published 2001
Packaging Tray
Operating Temperature -30°C~75°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
