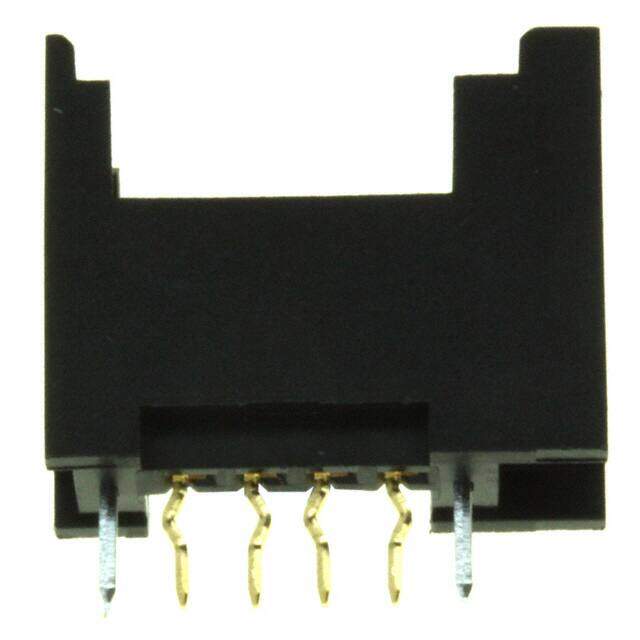

XN2D-1431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.079 GOLD PCB
PDF
/
Buying Options
Total Price: USD $4.67
Unit Price: USD $4.6728
≥1 USD $4.6728
≥10 USD $4.428063
≥100 USD $4.366613
≥500 USD $3.56708
Inventory: 173
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Polybutylene
Technical
Operating Temperature -30°C~75°C
Packaging Bulk
Published 2002
Series XN2
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Press-Fit, Solder
Connector Type Receptacle
Number of Positions 4
Number of Rows 1
Voltage - Rated 32VDC
Fastening Type Detent Lock
Voltage - Rated DC 32V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Terminal Pitch 2mm
Depth 6.4mm
Insulation Height 0.512 13.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Contact Length - Post 0.130 3.30mm
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 30mOhm
Max Voltage Rating (DC) 32V
Dimensions
Length 15.8mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
