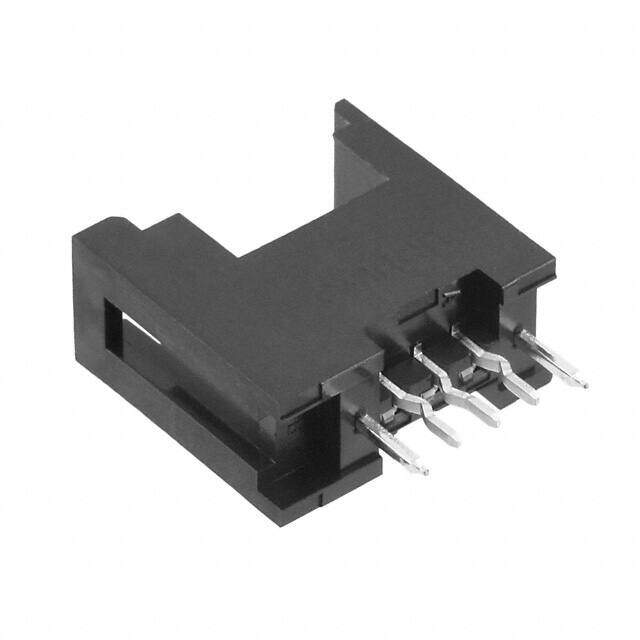

XN2D-1371
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 3POS 0.079 GOLD PCB
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.8808
≥1 USD $3.8808
≥10 USD $3.77608
≥100 USD $3.724864
≥500 USD $3.673824
≥1000 USD $3.622837
≥3000 USD $3.571823
Inventory: 159
Minimum: 1
-
+
Technical Details
Technical
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.130 3.30mm
Number Of PCB Rows 1
Contact Finish - Post Tin
Body Breadth 0.252 inch
UL Flammability Code 94V-0
Contact Resistance 30mOhm
Mating Contact Pitch 0.079 inch
Durability 50 Cycles
Max Voltage Rating (DC) 32V
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.512 13.00mm
Terminal Pitch 2mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 32V
Subcategory Headers and Edge Type Connectors
Fastening Type Detent Lock
Voltage - Rated 32VDC
Number of Rows 1
Number of Positions 3
Connector Type Receptacle
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series XN2
Published 2001
Packaging Bulk
Operating Temperature -30°C~75°C
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
