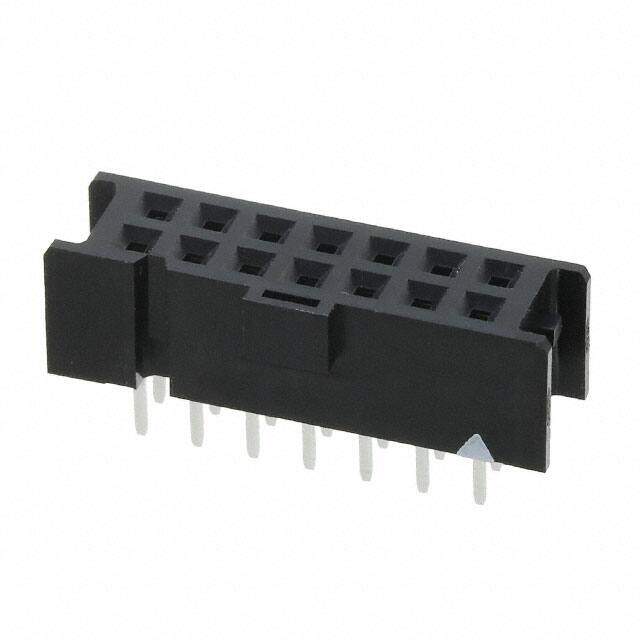

XG4H-1431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Board to Board & Mezzanine Connectors BtoB Socket 14Pin Straight 1Polarize
PDF
/
Buying Options
Total Price: USD $3.3
Unit Price: USD $3.3
≥1 USD $3.3
≥10 USD $2.99464
≥100 USD $2.63868
≥500 USD $1.913032
≥1000 USD $1.715138
Inventory: 1153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series XG4
JESD-609 Code e3
Feature Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 14
Number of Rows 2
Voltage - Rated 300VAC
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Straight
Depth 7.1mm
Insulation Height 0.283 7.19mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Max Voltage Rating (AC) 300V
Max Current Rating 3A
Dimensions
Length 22.3mm
Contact Finish Thickness - Mating 5.90μin 0.150μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Stack Height (Mating) 9.7mm 10.1mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
