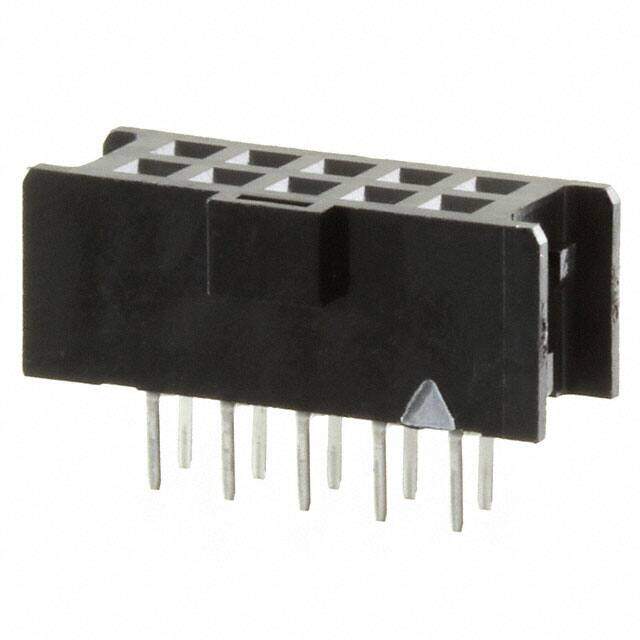

XG4H-1031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Board to Board & Mezzanine Connectors BtoB Socket 10Pin Straight 1Polarize
PDF
/
Buying Options
Total Price: USD $3.55
Unit Price: USD $3.5464
≥1 USD $3.5464
≥10 USD $3.22168
≥100 USD $2.838097
≥500 USD $2.057634
Inventory: 1197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series XG4
JESD-609 Code e3
Feature Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Number of Rows 2
Voltage - Rated 300VAC
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Straight
Depth 7.1mm
Insulation Height 0.283 7.19mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Max Voltage Rating (AC) 300V
Max Current Rating 3A
Dimensions
Length 17.3mm
Contact Finish Thickness - Mating 5.90μin 0.150μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Stack Height (Mating) 9.7mm 10.1mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
