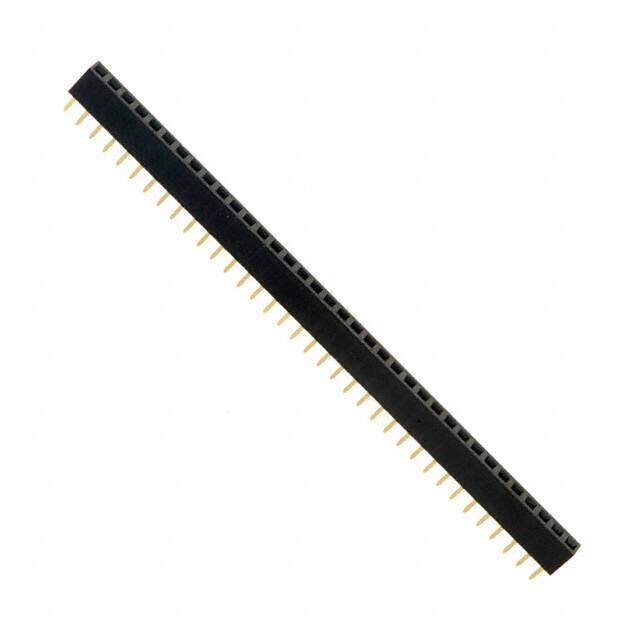

25633601RP2 image
Favorite
25633601RP2 image
Favorite

25633601RP2

NorComp Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 2MM VERT SGL ROW 36POS
PDF
/
Inventory: 5946
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating Flash
Width 2.39mm
Length 72.2mm
Height 4.29mm

Technical

Housing Color Black
Contact Gender Female
Contact Finish - Post Tin
Number of Contacts 36
Lead Pitch 2mm
Contact Length - Post 0.098 2.50mm
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Insulation Height 0.169 4.30mm
Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 500V
Gender Female
Number of Rows 1
Color Black
Number of Positions 36
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 2563
Published 2007
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
